ENGINEERED TO PERFORM
400
PS @ 6500 RPM
7,200
MAXIUMUM RPM
1300
KG DRY WEIGHT
DESIGNED FOR VICTORY
Designed to compete in national and international GT4 class series only (subject to homologation).
SPECIFIED
TO COMPETE
Chassis
Modular lightweight bonded aluminium structure
Wheels
Forged alloy
Tires
Front 245/645/18, Rear 305/680/18 Pirelli Slick
DIMENSIONS
Length
4,410 mm
Height
1,290 mm
Track
1,664 mm
✕
Vehicle Specification
| Chassis | Modular lightweight bonded aluminium structure |
| Wheels | Forged alloy |
| Tires | Front 245/645/18, Rear 305/680/18 Pirelli Slick |
| Suspension front/rear | Forged aluminium double wishbone suspension, 2-way adjustable Ohlins TTX dampers, uprated bushes and anti-roll bars |
| Braking system | 6-piston calipers front, 4-piston calipers rear, 2-piece brake discs, adjustable brake balance |
| Fuel tank/filler | 96L fuel cell with dry brake filler and fuel drain system |
| Engine specification | Lotus-tuned 3.5 ltr Toyota 2GR V6 with dry sump lubrication |
| Engine cooling | Emira radiator, Laminova heat exchanger |
| Transmission | Xtrac 6-speed sequential with limited-slip differential, electronic flat shift and auto-blip |
| Electronics | Motec IP with data logger – competition specification wiring harness |

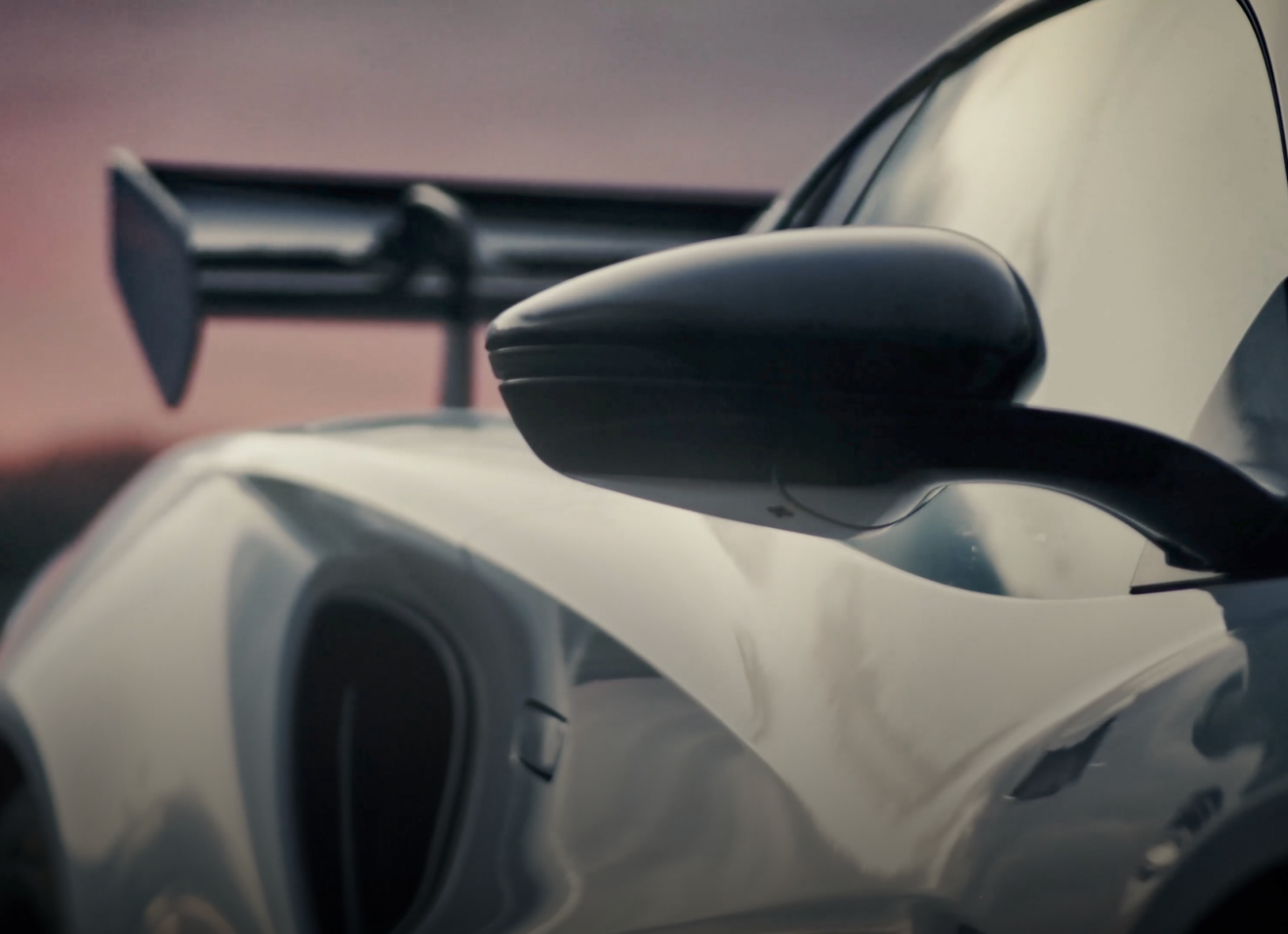

| Electric door mirrors | Standard |
| Jump battery connector | Standard |
| FIA rain light | Standard |
| 3-point air jack system | Standard |
| Safety equipment | FIA compliant roll cage, 6-point safety harness, driver safety nets and fire extinguisher system |
| Dimensions | Length 4,410mm / Height 1,290mm / Track 1,664mm |
Performance Specification
| Fuel rating | 98 ron minimum |
| Engine position | Transverse mid-mounted |
Interior Specification
| Steering type | Rack and pinion, power assisted, quick-release wheel |
| Instruments/controls | Motec ECU dash, gear indicator, fire extinguisher and electric cut-out |
| Seat | FIA approved competition seat – Hans compatible |
| Seat belts | FIA approved 6-point competition harness – Hans compatible |
Exterior Specification
| Body panel | Front splitter, diffuser and rear wing |
| Aero | Natural fibre front splitter and rear wing |
| Paint | Cost option |
Service Information
| Different service schedules and component life cycle limits apply to this vehicle | ||
| Non-standard tools, equipment and computer software are required for servicing and operation of vehicle | ||
